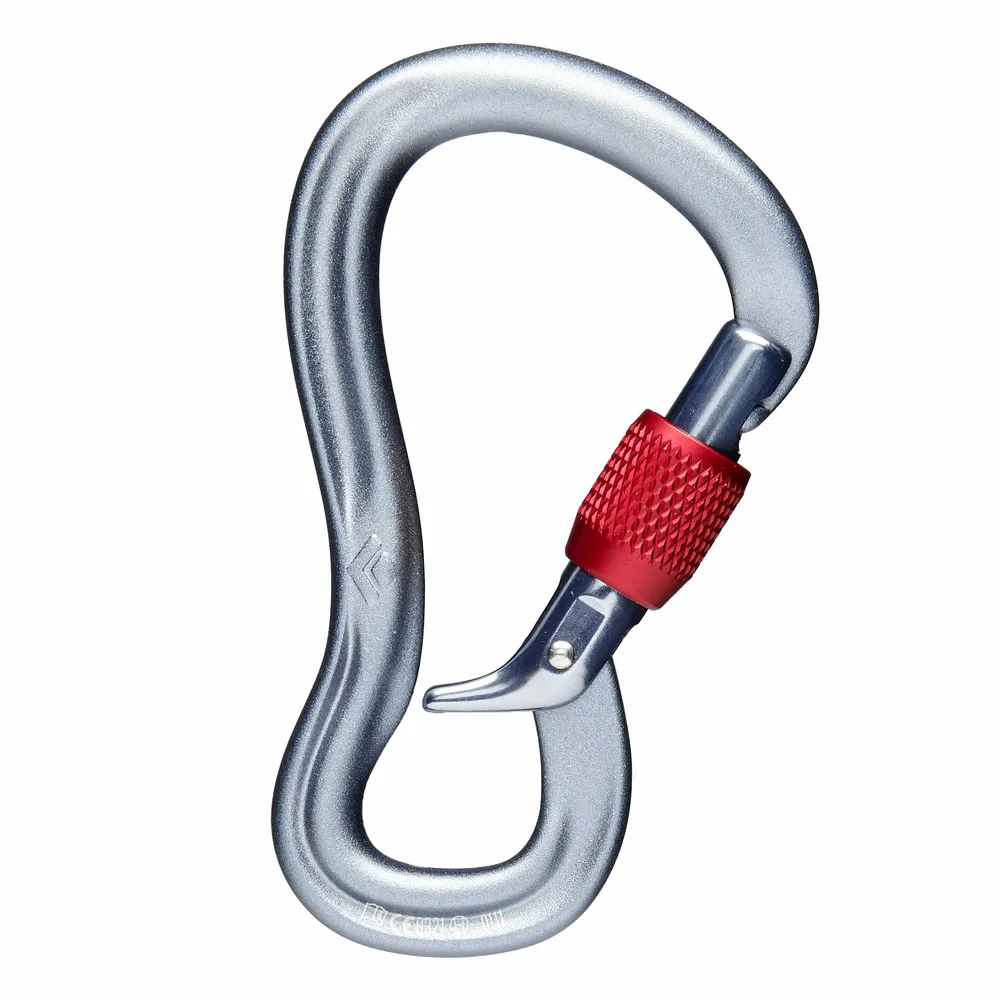

With its revolutionary, patent-pending design made possible by our in-house hot forge, the Black Diamond GridLock Screwgate eliminates the dangers of cross loading. Designed specifically for belaying, the intuitive, easy-to-use GridLock isolates the belay loop behind its uniquely shaped gate, thereby keeping the carabiner in its proper orientation. The GridLock's I-beam spine transitions into a large, rounded rope-bearing surface for maximum strength and smooth rope feeding. Simply put, you'll never have to deal with a shifting, cross-loaded belay carabiner again.
Features
- Hot-forged construction.
- I -beam spine transitions into a rounded, large rope bearing surface.
- Intuitive and easy-to-use design.
- Screwgate sleeve.
- Patented, innovative design isolates belay loop to eliminate cross-loading.
- Isolates belay loop.
- Type H or HMS connector. For dynamic belaying using a Munter Hitch or belay device.
Specifications
- Weight: 76 g (2.7 oz)
- Closed Gate Strength: 22 kN
- Gate Opening: 21 mm
- Minor Axis Strength: 21 kN
- Open Gate Strength: 8 kN
- Height: 110 mm
- Width: 65 mm
- Material: Aluminum
